The RTI Prophet - A Very Interesting Air Rifle!

The RTI Prophet is a successor model to the same company’s Priest PCP air rifle. It features a sidelever-cocking action, together with a number of other improvements.

The first U.S. sighting of the Prophet was in the 2019 Extreme Benchrest competition. Although based in Slovenia, RTI Arms sent a large team over to participate and observe at EBR.

I spoke to the team members. They found it an invaluable learning experience, both through participating in competition and talking to other shooters about their needs and wishes.

This was a very significant investment for a relatively small company. They were rewarded by an outstanding performance that included winning the 50 Yard Benchrest competition. Very impressive!

The RTI Prophet - A Very Interesting Air Rifle!

Now that the Prophet PCP air rifle is in full production, it’s available from your friends at Airguns of Arizona. Let’s look at what it has to offer…

The Prophet is available in .177 caliber, .25 cal, and .30 caliber. It’s also available in “.22 Caliber LR”. No, that’s not Long Rifle, the LR stands for “Long Range! This is the model Team RTI chose to shoot at EBR.

In .22 caliber, the LR Prophet has a custom Lothar Walther barrel that is designed to be shot with 25.39 Grain, redesigned JSB Exact Jumbo Monsters out at 100 Yards.

In a further indication of the Prophet’s long-range performance intent, the built-in Picatinny rail is machined at a 20 MOA angle. This makes it less likely that the scope will run out of elevation adjustment at long ranges.

Even though the Prophet PCP air rifle is a small gun – just 30.5 Inches overall length – I decided to mount a riflescope with comparable long-range credentials. The Sightron SIII FT 10-50 x 60 is just such a scope. It fitted and worked very well.

The RTI Prophet - A Very Interesting Air Rifle!

Using Leapers UTG PRO medium rings produced a well-balanced, manageable combination.

Ahead of the trigger guard is a second, short, Picatinny rail. This, of course, is for attaching a bipod – very necessary for any air rifle intended for long range shooting.

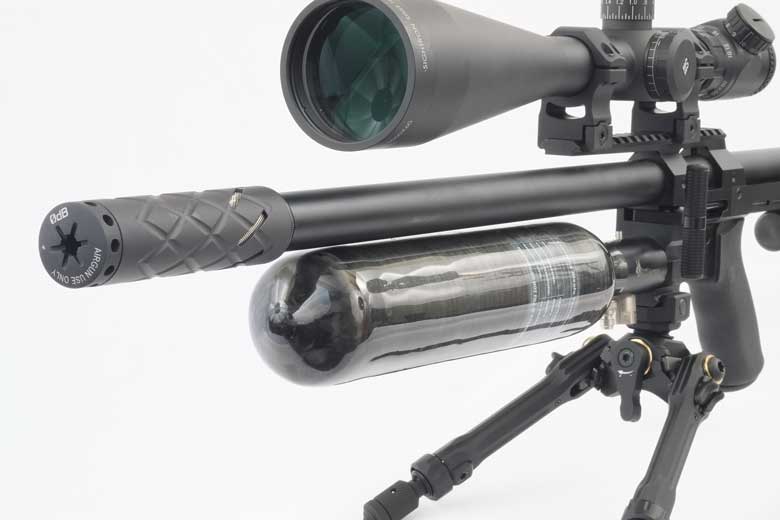

The Prophet has a shrouded barrel. However this is a powerful air rifle, expelling a lot of air with each shot. So we took advantage of the removable 1/2-Inch UNF thread protector to screw-in a 0dB “airgun only” silencer. This calmed the report significantly, at the expense of a little additional length.

The RTI Prophet - A Very Interesting Air Rifle!

The Prophet is supplied in a hard plastic case. What makes this case relatively unusual for a manufacturer-supplied case is that there is space inside to fit both the gun AND a mounted scope. Even a large riflescope like our Sightron 10-50 x 60, as we can see below. Some other manufacturers should take note!

Typical power levels for “unrestricted” (US-spec) Prophet Performance models range from 17.7 Ft/Lbs up to a maximum of around 100 Joules (74 Ft/Lbs) in .30 caliber. The power level spec in both .22 cal is 53 Ft/Lbs. In .25 calibers it’s approximately 63 Ft/Lbs.

RTI Arms tells us that owners will see about 70 shots per fill: more in .177 caliber.

There’s an externally-adjustable regulator. This allows the Prophet owner to fine tune the gun to a specific power level or pellet type.

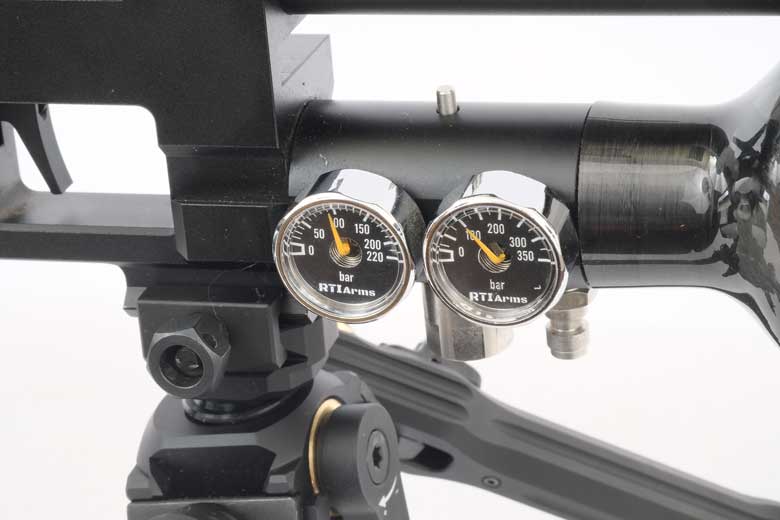

To assist with this, the Prophet is equipped with dual pressure gauges. One gives the fill pressure for the HPA tank, the other indicates the regulator pressure. The 500 cc carbon fiber tank has a maximum fill pressure of 300 Bar (4351 PSI).

Regulator pressure can be set by the owner to anywhere between 80 and 200 Bar (1,160 to 2,900 PSI). However the default factory setting is 125 Bar (1,813 PSI). This is the pressure that is held in the Prophet’s large 57 cc plenum. That’s the short tube between the regulator and valve, underneath and ahead of the magazine well.

Reg pressure is adjusted using the black socket head setscrew located inside the bright finish tube next to the paintball tank male fill nipple. Pressure is changed by rotating the screw with a 5mm Allen key.

As you would expect, adjustment of the hammer spring tension is valuable when adjusting the reg pressure. This is achieved by turning a 6 mm setscrew in the rear of the buttplate. (The 4 mm setscrew below that is used to bleed pressure from the gun).

The RTI Prophet air rifle has a two-stage trigger that can be adjusted down to a pull weight of just over 10 Ounces. The sample I shot had a pull weight of around 1 Lb 14 Oz. It gave a very pleasant, predictable release.

Adjustments are made – somewhat unusually – using a 1.5 mm Allen key inserted into the side of the action through the holes below the magazine well. One screw controls second stage engagement, while the other is used to adjust pull weight.

Another unusual feature is that the magazine can be simply adjusted to sit to either the left or right side of the action, depending on the shooter’s requirements. Here it is in the vertical position, which you can also choose if you prefer.

As we can see, flexibility is a strong suit for the Prophet!

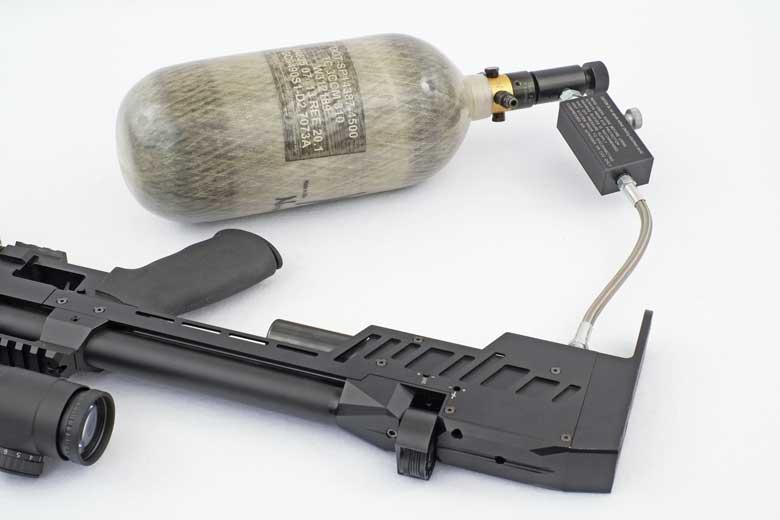

And here’s another unusual feature of the RTI Prophet air rifle. There’s a second fill port located in the underside of the receiver, just ahead of the buttpad. This allows the gun to be shot with a separate HPA tank attached by a flexible tube, as shown below.

The RTI Prophet - A Very Interesting Air Rifle!


To use the Prophet in this configuration, the conventionally-located front HPA tank is removed. This can give better balance for some users. However the regulator is bypassed in this mode of operation. A maximum pressure of 200 Bar (2,900 PSI) can be used when the remote tank is connected in this way.

Although our sample is in all-over tactical black, the Prophet is also available with bronze Cerakote highlights. Now that looks really cool!

SIGAir is the division created by SIG Sauer firearms a few years ago to bring their firearms into the airgun world. The purpose was to create exact replicas that would be useful in training scenarios as well as appeal to replica aficionados and collectors. Manufactured to SIG’s high standards by top makers in Taiwan and Japan, SIGAir plans to bring all airgun production in-house to the New Hampshire facility in the future and they’ve already ramped up with their break-barrel ASP20 rifle; 100% made in the U.S.A.

Their first foray into PCPs is a copy of their MCX Virtus centerfire AR-style firearm. On display at SHOT Show 2019, the production model was introduced at SHOT 2020. Available in .22 caliber only, the Virtus provides plenty of rapid-fire enjoyment via a double-action trigger pull supplied by a proprietary 30-round belt-fed Rapid Pellet Magazine (RPM).

The Virtus is the first venture into PCPs by SIGAir

A 13 cubic-inch tank with pressure gauge doubles as the buttstock instead of the ubiquitous multi-position AR-style stock, by clamping a separate polymer unit to the rear of the tank. While the gauge reads to 6000 psi, the Owner’s Manual states the maximum fill is 3000 psi. An internal regulator is set to 1100 psi to give shot consistency and SIGAir rates the velocity potential to 700 fps.

Using a 100cf tank from AofA to charge the Virtus

Overall length of the Virtus is 37.25 inches and it weighs 7.5 pounds. Surrounded by a polymer M-lock type handguard is a 17.5-inch rifled steel inner barrel. The cast aluminum alloy receiver has controls in the identical positions found on the firearm. However, only the ambidextrous safety and magazine release are functional. A flattop picatinny rail runs the length of the handguard and along the entire top of the receiver giving a total of 21.5 inches of available rail. Already attached when you open the box are foldable front and rear sights. The rear consists of a two aperture peep that flips between the large and small openings. It is only adjustable for windage. The front is a mil-spec post sight adjustable for elevation using a handy little 4-way tool that is stored inside the handgrip. The other three operations the tool is for are: seating pellets to the same depth in the RPM belt, turning the windage adjustment screw and for the hex head clamp screw of the buttstock unit.

The metal trigger is a non-adjustable curved, smooth-faced blade that both advances the RPM belt and cocks and releases the internal hammer to strike the valve with each pull. The trigger pull is heavy at almost 10 pounds in this sample rifle and, as with a revolver, using the first joint rather than the pad of the trigger finger is the best technique for manipulation. Quite a few pellets were put through this Virtus and while the trigger pull was smooth enough, it did not seem to lighten up over time. For long range sessions a shooting glove would also be beneficial.

Load the magazine by removing the realistic-looking plastic magazine “housing” from the rifle. Flip up the cover on the right side to reveal the 30-round linked belt. Gently remove it and place on a flat surface with the silver-gray side of the links facing down. Load pellets nose first then seat them to the same depth with the handy tool. Examine each link to be certain no pellet noses protrude even a little as this will jam the mechanism and prevent the trigger from being pulled. Feed the belt back into the housing (it only fits one way), close the cover and it’s good to go. Like any airgun, there were pellets it liked and others it didn’t. Heavier pellets above 15 grains tended to open up a little more and have a larger extreme spread. The exception was the new Predator International Hades pellet. At 15.89 grains they were accurate and yielded almost 12 fpe. Pellets it liked were all domed and, unsurprisingly, two SIGAir branded pellets worked well: Venoms (14.5 grns) and Crux (14.9 grns)­­­­. H&N Field Target Trophy pellets at 14.66 grains performed very well also. SIGAir claims of 700 fps could only be achieved with 11.75 grain Predator lead-free GTOs. A couple of individual GTOs actually exceeded 700 fps with the group average at 692.8 fps. SIGAir also claims up to 150 shots per fill but my experience was closer to 110 or so.

The RPM belt being installed back into the plastic magazine housing

Flip up sights are great for general plinking and training purposes, but over 30 feet, combined with old eyes, yield more misses than hits so I mounted a Sun Optics USA 3x32mm reflex sight with red & green illuminated reticle. It worked great with this rifle and fit the military look to boot. This combo aided in shrinking 5-round groups to around .75 inch at 25 yards.

SIGAir lists the Virtus at an MSRP of $350. If you admire SIG products or are a replica fanboy, check out AofA’s price. It comes with a one-year warranty.

Meopta ZD 4-16x44 Mildot Special Now At AoA. It’s A Cracker!

As you read on this blog back in July, Airguns of Arizona has started carrying a range of Meopta riflescopes. One of these is the Meopta ZD 4-16×44 Mildot Special. It’s a great scope for precision, long range shooting!

The manufacturer says that the Meopta ZD 4-16×44 RD scope was designed for use by special forces ops, Law Enforcement snipers and world-class professional target shooters for distances up to 800 Meters. For that reason, the mechanical structure is designed to meet the requirements of MIL-STD 810, STANAG 2194 and STANAG 2985.

This makes it a tough riflescope that’s dust proof and waterproof. If you’re hunting in adverse climatic conditions, this could be the scope for you.

Meopta ZD 4-16x44

However, it note that it works well in use on PCP air rifles. Not springers, as it’s not braced against reverse recoil.

Make no mistake, the image quality is outstanding, both in terms of contrast and resolution. You’ll definitely have a VERY good view of your target with this ZD 4-16×44 scope.

As they used to say – and maybe still do – about Rolls Royce cars in England: if you have to ask how much it is, you obviously can’t afford it!

Let’s say quietly that the price of the Meopta ZD 4-16×44 RD scope is $1,300 – well, less one cent! So this is a scope for the PCP air rifle shooter who is really, really serious about shooting.

Coming straight from the box, I thought the Meopta ZD 4-16×44 RD Mil Dot Special scope looked rather long. In fact, at 15 1/4 Inches, it’s not so long as it looks, being comparable to other quality scopes of similar power. The balance even on bullpup PCPs is good and – at around 28 Ounces – not too heavy either.

Meopta ZD 4-16x44

Zero-settable elevation and windage turrets are protected by substantial caps. When these caps are removed, a pair of exquisitely-operating turrets are revealed (see photo above). It’s a tactile delight just to turn the turret knobs and enjoy the clicks!

With a maximum magnification of 16x, the scope’s Mil Dot reticle is designed for use at 14 x magnification. This is a second focal plane scope.

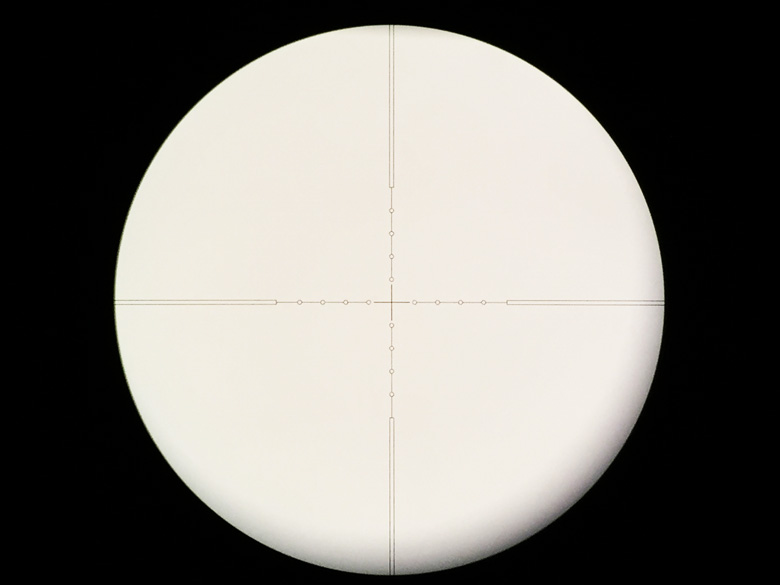

The reticle itself is VERY fine, as we can see below. The Mil Dots are positioned at 1 Mrad from each other when see at 14 x. The diameter of each dot is 0.2 Mrad, according to Meopta.

Meopta ZD 4-16x44

So the Mil dot reticle is designed for holdover/holdunder use at 14X magnification. However, it can also be used at 7X if desired, by doubling the number of dots used (to compensate for the 50% less magnification).

The central cross hairs of the reticle can be illuminated red – if required – using the 7-level turret set on the left side of the scope. This would come in useful in hunting situations where the extremely thin reticle could otherwise be lost against the background. Conveniently, there’s an intermediate “off” position between every brightness setting.

In addition to the Mil Dot reticle, the Meopta ZD 4-16×44 RD Mil Dot Special scope qualifies for air rifle use due to its ability to focus as close as 10 meters.

Meopta ZD 4-16x44

Surprisingly, perhaps, this is a front objective (AO) focusing system, rather than the side parallax adjustment that is so popular today with airgunners. However, it operated well and easily in practical shooting.

Being at the front of the scope, the Adjustable Objective/focus ring is likely to be a long reach forward for many shooters. It has to be said that most air rifle shooters will find a scope with side AO easier to use. However, this ring is easy to find and use due to its molded rubber surface.

Rotation requires a definite effort. However this makes for an AO ring which is tight enough to remain where it’s set and not be changed accidentally.

The same applies to the zoom ring. This is smaller but has a short lever built-in, making rotation quite convenient when a change of magnification is required.

This scope features MeoBright, Meopta’s proprietary ion-assisted lens multi-coating applied to all air-to-glass optical surfaces. Developed by Meopta, MeoBright ion- assisted multi-coatings are said to eliminate glare and reflections. The company claims it delivers an industry leading 99.8% light transmission per lens surface.

Long-tern optical quality is provided by MeoShield ion-assisted coating. Meopta says that this protects external lens surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions. MeoShield meets military specifications for durability and surface hardness: that has to be a great recommendation.

Another way to protect the front lens element is to use a filter. The Meopta ZD 4-16×44 RD scope has an M52 x 0.75 thread, allowing the use of suitable photographic filers for lens protection if required. Alternatively, Neutral Density filters could be used to reduce glare in extremely bright conditions.

Finish is flawless with an uniform overall matt black powder-coat on metal parts. Black rubber gripping surfaces are added to the front and rear objective bells for easy rotation.

The Meopta ZD 4-16×44 RD scope is supplied with a bikini cover for objective and eyepiece lenses.

And there’s a lifetime transferable warranty backed by the manufacturer.

The knowledgeable guys at Airguns of Arizona will be happy to tell you more about the Meopta ZD 4-16×44 RD riflescope, together with the other scopes in the Meopta range. Tell them that the AoA blog sent you 🙂

The need for entry-level PCPs was recognized by a few manufacturers because, let’s face it, not all airgunning enthusiasts are in a position to drop $1000+ on a PCP and then obtain the additional accoutrements that are needed such as SCBA tanks and compressors. Some just want to dip a toe in the water and know that if PCPs aren’t their cup of tea, they haven’t mortgaged the farm to find that out.

               Stoeger Industries has been around almost 100 years as a firearms purveyor, publisher and gun store that began operation in New York City and was known for value-priced firearms. In the early 2000s they became part of the Benelli USA family. Benelli, known for their Italian heritage shotguns, is owned by the 500-year-old gunmaker Beretta Holdings. Over a decade ago an airgun division was formed and began importing airguns for the U.S. market and the airguns they sold were also value-priced. Seeing the burgeoning interest in PCPs a decision was made to introduce their own model to the public – the XM1. Having an Italian parent company gave them access to Benelli’s design team and it shows in the ultra-sleek and sporty lines of the XM1. Italian inspired features were incorporated like “Proadaptive Checkering”, consisting of raised “Thridion” checkering for comfort and excellent, spongier, gripping surfaces along with advanced ergonomics.  Supporting this concept utilizing removeable spacers in the buttstock, various combinations can be tried to fit the gun to any individual from a small-statured youth to the maximum length-of-pull adjustment of 15 inches, fitting a large adult. Additionally, Stoeger provides each XM1 with a higher cheekpiece and larger grip insert that are easily swappable, further increasing the ergonomics of the gun. The open thumbhole style polymer stock lends this gun for use by left-handers. Not truly ambidextrous, however, as the bolt handle cannot be shifted to the left side.

Low and High swappable cheekpieces are included.

Other built-in features include a regulator to give shot-to-shot consistency, a fiber-optic front sight and a two-stage trigger that is adjustable only for l-o-p over a 12mm range, two short picatinny rail sections that mount on the sides of the forearm with one having three slots utilizing magnets to hold extra magazines, molded-in holes for sling swivel attachments and a package of assorted O-ring seals. As an entry-level PCP for a youth, the weight of just under six pounds without a scope is definitely a plus. For anyone taking the rifle into the field the lightweight will be welcome.

               The XM1 provided for review was the S4 suppressed version in .22 caliber. The S4 is Stoeger’s latest generation sound suppression which is permanently affixed to the airgun and adds about six inches to the standard XM1 bringing the overall length to 45.5 inches with all stock spacers installed. Baffles combined with a decompression chamber below the shrouded barrel moderates the report very well. Definitely checks the box for “backyard friendly”.

The XM1 comes in either suppressed or non-suppressed varieties

The rifled steel 21-inch barrel is mated to a black anodized aluminum breech block. The air cylinder appears to be 100cc and is located under the barrel. A manometer sits at the muzzle end and the tank is rated to a 200 bar (2900psi) fill using the supplied brass probe. The fill opening is just behind the manometer and a stopper is supplied to keep debris out as there is no collar or cover for the fill hole.

               It’s a bolt-action repeater using a 7-round rotary magazine. A .177 caliber version is also available and its magazine holds 9 rounds. After the last shot, a block rotates into place preventing the bolt from closing. A nice touch to keep you from wasting air on empty chambers. The bolt handle is large and molded in an unusual shape. It also sports the “Thridion” checkering for extra purchase when working the bolt. A very natural and comfortable design, the bolt worked smoothly right out of the box. Cocking occurs upon drawing the bolt back and the gun can be safely de-cocked, although this is not covered in the Owner’s Manual.

               The trigger is a wide, curved and smooth-faced metal unit, also very nice right out of the box. The average pull weight was a light 2 pounds eight ounces, having a long take-up but a crisp break. Surprisingly good for an airgun in this price range. The safety is a cross-bolt located in the front of the trigger guard.

              While it comes with a square-notch rear sight, it takes up some of the minimal 11mm scope rail available so I found it to be a choice between iron sights or a scope. The rotary magazine also protrudes above the breech block so higher scope rings/mounts are necessary. Going to my trusty MTC Mamba-Lite 4-16x42mm scope provided by AofA, and SportsMatch rings I had better than expected results with this modestly priced air rifle. Thinking the scope might be over-matched for what the gun could do, I found they paired nicely as I was able to shoot very tight groups out to 40 yards and 5-shot ragged holes at half that distance. It didn’t seem too picky about what I fed it, though there are always some pellets an airgun won’t like. Best accuracy was obtained with the new Predator International 15.89 grain Hades pellets. This gun also really liked the 16 grain Predator Polymags and 14.5 grain SIG Venoms. Polymags, with their polymer tip, were the maximum length that would still work in the rotary magazine. No worries using longer pellets though as a single-shot tray is also included with the XM1.

The MTC Mamba-Lite 4-16x42mm pairs nicely with the XM1. The bolt is back because it can’t be closed on an empty magazine.

               Rated by Stoeger as launching lead pellets at 800fps, I found it actually exceeded that velocity with 18.21 grain pellets hitting 840fps at a mile above sea level. Approximately 35 shots could be squeezed out while the manometer read in the “green zone”, but velocity starts to drop after the third full magazine.

              MSRP on the XM1 is $200. The XM1 S4 runs $229 in a kit form with a 4x32mm scope. There is also an option for a RealTree camo version, only in .22 for $250. Stoeger Airguns stands behind their products, giving the original purchaser a five-year warranty.

The XM1 has shortcomings, of course, but you get quite a bit for your money. All-in-all, if you’re looking to get into PCPs, this one is worth checking out.

Surprise! The QB78 Is Now Available At Airguns Of Arizona

Generally, it would be fair to say that Airguns of Arizona is better known for selling airguns in the $1,000+ price range, rather than those at around $100. But now there’s an exception…

You see, AoA now has in stock three versions of the CO2-powered Beeman QB78 air rifle.

These Beeman QB78 air rifles are the latest version of a model with a long history. The basic design goes waaaay back to that of the iconic Crosman 160 of 1955!

Surprise! The QB78 Is Now Available At Airguns Of Arizona

So, yes, this is basically a 60+ year old air rifle – with improvements! They’re still a great gun because – like the Mauser 98 bolt action firearm – it has a winning blend of features and a long, proven history of happy owners.

Of course, as a CO2-powered gun, it’s not a powerhouse. Don’t expect 1,000 FPS, or anywhere like it. But for plinking and target shooting, Beeman QB78 air rifles have many fans. At prices as low as of $94.95, they are great value!

AoA main man Robert Buchanan was turned on to the QB78 back in the Summer when investigating the DT Fletcher collection of historic airguns. This brought him back into contact with the classic Crosman 160 and – from there – to the QB78.

In fact, Robert considers that the finish and general manufacturing quality of current-production QB78s is far superior to that of the vintage 160s built many years ago in Fairport NY.

There’s three QB78 models in stock at AoA. All are bolt action and CO2-powered. Two have synthetic stocks and one – the QB II model – is actually a magazine-fed 10-shot repeater. Wow! That’s the ultimate development of Crosman designer Rudy Mertz’s original 1955 air rifle.

Any QB78 model can be a great choice for “back to basics” plinking or fun shooting. They’re also great for newcomers to the sport who want to start at the lowest-possible price

CO2 airguns have a generally bad reputation for shot-to-shot consistency. But it has to be said that the shot curve of Beeman QB78 air rifles can be less extreme than that of many unregulated PCP air rifles!

Yes, it’s true that FPS will drop rapidly if any CO2-powered airgun is fired rapidly. However, many shooters take their time when shooting, particularly with a single-shot, bolt action like that of the Beeman QB78 or QB78S air rifle.

Surprise! The QB78 Is Now Available At Airguns Of Arizona

For example, I fired a QB78S air rifle (synthetic stock, non magazine-fed model) with a shot-to-shot gap of 30 seconds for this test.

As we can see from the following chart, the result was 58 “consistent” shots. That is, 58 shots at between 600 and 625 FPS from a normal fill of 2 x 12 gram CO2 cartridges at around 65 degrees F. That’s a Standard Deviation (the statistical calculation of shot-to-shot variability) of 6.17 FPS.

Surprise! The QB78 Is Now Available At Airguns Of Arizona

This is an excellent number and is a shot curve that is not far behind some regulated PCP air rifles I have tested!

But let’s talk more about muzzle velocity…

Beeman is extremely conservative in its muzzle velocity claims for QB78 air rifles. This is a VERY unusual trait in the world of low-priced air rifles where “Zillion FPS” claims are common, whatever the actual performance capabilities of the gun in question.

Below. Two 12 Gram CO2 cartridges are loaded back-to-back in the QB78. Just like the Crosman 160!

Beeman specs are a maximum of 650 FPS in .177 caliber and 500 fps in .22 cal. But – unlike every other manufacturer in the low end of the market, these figures are given for lead pellets at an average 68 degrees F temperature.

This is important because, as with other CO2-powered airguns, the muzzle velocity of Beeman QB78 air rifles increases with ambient temperature. In fact by about 2 FPS per degree F.

This means that a typical .177 caliber QB78S air rifle will meet the 650 FPS claim with 7 Grain lead pellets at somewhere around 70 degrees F.

At higher temperatures, the FPS will continue to rise, reaching a maximum at about 90 degrees F. So, at 90 degrees, our QB78S will achieve 760 FPS with light alloy pellets and 695 FPS with 7 Grain lead RWS Hobby pellets. All in .177 caliber, of course and with no change except ambient temperature.

Trigger pull weight is also remarkably consistent for an air rifle of this price. The average pull weight for the Beeman QB78S air rifle I tested was 2 Lbs 11 Oz and it varied by only 2 Ounces around the average at most. That betters the performance of many more expensive air rifles I have tested!

And that trigger is easily adjustable for pull weight, sear engagement and overtravel. Just pop off the stock to find adjustment screws on the trigger housing. That’s a manual safety we see just in front of the trigger guard…

Beeman QB78 air rifles are easy to shoot. They’re light and point naturally. The trigger is good for the price and consistent, as we have described above.

Unlike all the powerful spring/piston break barrel air rifles at around this price, the Beeman QB78 has no recoil and requires no special hold to shoot accurately. That’s a huge advantage for it in the “around $100, entry level airgun” market, so long as the owner is not intending to use it for hunting.

Beeman QB78 air rifles come with iron sights as standard. However these are very much 1950’s style! The rear sight has elevation provided by moving back the ramp. This allows the sight leaf to “catch” in a higher notch and raise the point of impact.

And if you think that’s primitive, just wait for the windage adjustment! This is achieved by loosening the two setscrews holding the sight leaf in place, moving the sight leaf across “by eye” and re-tightening the screws. The “high tech” QB II repeater has fiber optic sights to go with the modern rotary magazine!

Fortunately, the breech of Beeman QB78 air rifles has dovetail rails for scope rings. If you want to benefit from the accuracy potential of this gun, you really need to mount a scope…

Some potential purchasers of the single-load QB78s are concerned about accessibility for loading pellets when a scope is fitted. However, there’s actually plenty of space, as you can see below.

With the single-load guns, I find it best to lay a pellet on the flat side of the breech and just roll the pellet across until it drops into the loading tray. At any event, there’s more space for pellet-loading than is found in Crosman bolt action breeches, like that fitted to the Benjamin Discovery and Maximus, for example.

The magazine-fed version makes loading even easier, of course. But it’s probably rather too easy and modern for “hard core” single-load QB78 fans!

Finally, the single-load Beeman QB78 air rifle is the Ruger 10/22 of the airgun world! It’s a small, light, cheap gun that has a load of fans and a vast array of upgrades and accessories available out there.

It’s incredibly customizable and has been the starting point for many amateur (and professional!) airgunsmiths, due to its simple, intuitive design.

If you are one of the few serious airgunners who has never tried the classic delights of a single-load QB78, now could be just the time to do so. It’s bargain-priced time travel!

Weihrauch HW110 TK PCP Air Rifle

The Weihrauch HW110 TK is the latest model from the famous German manufacturer. It’s fitted with an elegant gray laminated stock making for a very attractive overall appearance.

In case you were wondering, the “T” stands for “Thumbhole”, while “K” represents “Kurz” – “short” in German i.e. carbine length. It’s one of several models in the HW110 range that are available at Airguns of Arizona.

As with other Weihrauch PCP air rifles, the HW110 TK is well-priced for such a high quality product. It represents strong value for those who value accuracy, a great trigger, handling and “feel” over shot count.

Overall appearance of the Weihrauch HW110 TK is that of a sophisticated, quality product. There’s nothing fancy, flashy or unnecessary, just the beauty that comes from great design engineering and huge attention to detail in manufacturing.

Weihrauch HW110 TK PCP Air Rifle

The HW110 is broadly similar to the long-running HW100. However it’s more compact and lighter, with different ergonomics, too. In fact, the action is closer to that of the HW44 PCP air pistol!

Similarities between all three models include sidelever cocking, unbroken scope mounting rail and a 10-shot rotary magazine.

There’s always something special about Weihrauch PCPs and that’s the way with the HW100 TK. It’s very difficult to describe, but these air rifles give a “just right” feel when you shoulder the gun. Weihrauch PCPs always seem to fit, hold and point very well for a wide range of people.

The rake of the stock’s pistol grip is ideal. This combines with a raised comb to the stock that gives a comfortable cheek weld.

The 39.25-Inch overall length is very manageable and comfortable to hold on target. Further, the overall weight of 9 Lb 10 Oz – with the scope mounted – is very well balanced, too.

Weihrauch HW110 TK PCP Air Rifle

The Weihrauch HW110 TK air rifle I tested gave outstandingly consistent muzzle velocity. However the small HPA tank capacity and high power level means that shooters will need to refill after 20 – 30 shots to achieve the extreme consistency of FPS that the HW110 can achieve.

In addition, this HW110 was accurate with all the pellets I tried. This is a benefit I have found before with other Weihrauch PCPs. They tend to not be very pellet-picky. Of course, there is – as with most airguns – a general tendency for mid-weight and heavier pellets to shoot more accurately than lighter pellets.

The HW110 TK I tested was in .177 caliber. JSB 10.34 Grain Exact Heavy Diabolo pellets turned-out to be the favorite fodder, producing excellent accuracy!

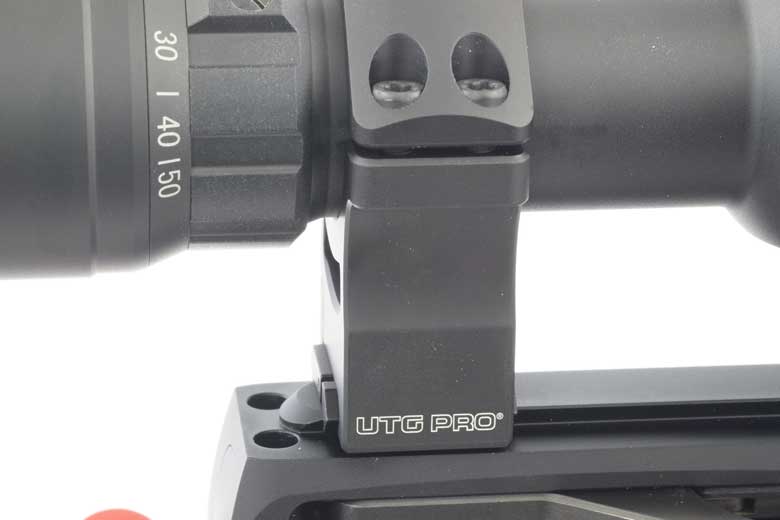

For sighting, I used UTG Pro rings to mount a Sightron S-TAC 3-16 x 42AO scope. The combination looks good and handles well, too. (Look for this scope to be available at AoA in the near future).

Weihrauch HW110 TK PCP Air Rifle

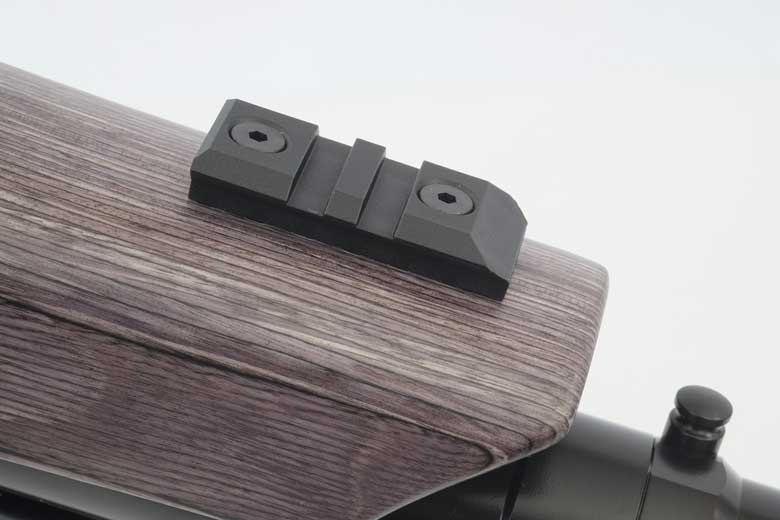

The Weihrauch HW110 is supplied with an optional, screw-on Picatinny rail. It’s ideal for attaching a bipod. For most of us, resting the gun improves our accuracy – so this is good to have. It’s optional: if you don’t want it, don’t fit it.

That proved ideal for mounting a Spartan Javelin bipod. I find that it is an ideal piece of equipment when light weight – make that very light weight – portability and simplicity are required.

The trigger pull weight of this Weihrauch HW110 TK averaged just 8.5 Ounces. That’s, 0 Lbs 8.5 Oz!

Even with such a light setting, there’s a clearly-defined first stage with a fair degree of travel. Pulling back, it’s easy to feel the “wall” – even with such a light pull weight. The smallest amount of additional pressure then releases the sear with a real “glass break” sharpness of definition.

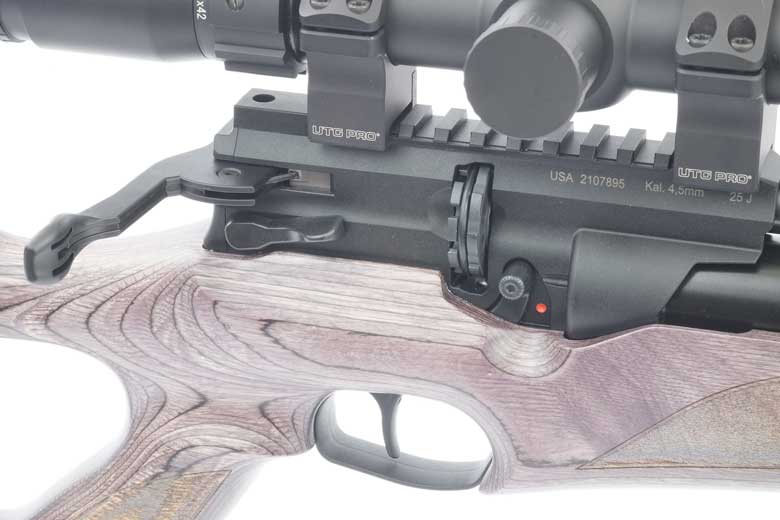

The side cocking lever is comfortable and easy to operate. The lever itself has a very good shape for operation.

Opening the lever is requires almost no effort. There’s just a little more required for the final few degrees of swing as the magazine is rotated in preparation for the next shot.

Closing the lever requires a larger, satisfying amount of effort. You’re not likely to close the lever by accident on an HW110! However it doesn’t feel bad, rather I’d describe it as a “definite” action.

Another significant benefit of the HW110 – as with other Weihrauch PCPs – is that it has an effective double feed prevention system. Unlike many magazine-fed PCP air rifles it’s not possible to double-feed this gun.

If the cocking lever is opened and closed on the already-loaded action, a second pellet is NOT loaded.

For many of us, this can be an extremely beneficial feature. It eliminates the possibility of a double-shotted discharge where neither of the pellets will hit the target. It also removes the potential of jamming, by preventing double-feeds.

The HW110 is supplied with two rotary magazines. These are very simple to use and foolproof in operation. Also included is a fill probe. But note that you’ll need to buy an adapter to connect it to a regular female 1/8-Inch NPT connector, as is likely to be fitted to your HPA tank of compressor. AoA can advise if you need help on this.

Yes, the HW110 is yet another great air rifle from Weihrauch. It’s definitely worthy of consideration if you’re looking for a sophisticated, accurate PCP that fits you like a glove!

The previous installment described the basics of the Concept XR and its “tacticool” features. Now for some coverage of its performance.

Thanks to my friends at Predator International I had a small supply of their new Knock-Out slugs to try through the XR. The XR has a slightly choked barrel to better handle the new slugs and I had both the .216 and .217 diameter slugs to try out [AofA pellet offerings]. The sample XR worked the best with the .217 slug and was consistently accurate. I did have to re-zero the scope because at the highest power setting they shot flatter and were hitting higher than regular pellets. The slugs will definitely fit the 10-round rotary magazine without a problem, however, tipped pellets like the Polymag were just a hair too long for the magazine but will work just fine using the single-shot tray included with the XR.

Knock-Out slugs; unfired on the left, fired through drywall on the right.

The lowest power setting yielded 65 regulated shots on one fill shooting 14.66 grain Vortex domed pellets. Accuracy at 25 yards was excellent. Other pellets I tried are listed below:

Low Power Setting:

  • Predator GTOs at 11.75 grains averaged 631fps with Extreme Spread of 2.25
  • JSB Exact Jumbos at 15.89 grains averaged 561fps with Extreme Spread of 20.28
  • Crosman Hunting at 14.35 grains averaged 575fps with Extreme Spread of 6.59
  • RWS Super H-Points at 14.2 grains averaged 564fps with Extreme Spread of 7.49
  • Hatsan Vortexs at 14.66 grains averaged 574fps with Extreme Spread of 11.31 — gave better accuracy at low power setting

At the High Power Setting:

  • Predator GTOs at 11.75 grains averaged 960fps with Extreme Spread of 12.03
  • JSB Exact Jumbos at 15.89 grains averaged 864fps with Extreme Spread of 8.46
  • Crosman Hunting at 14.35 grains averaged 834fps with Extreme Spread of 19.3
  • RWS Super H-Points at 14.2 grains averaged 878fps with Extreme Spread of 10.77 — gave the best accuracy of the group shot at high power
  • Hatsan Vortexs at 14.66 grains averaged 885fps with Extreme Spread of 6.68

The MTC optics Mamba-Lite 4-16x40mm scope I paired with the XR required me to shim the front mount as I ran out of elevation adjustment. Once I had it dialed in the combination worked great. With higher powered scopes it might be wise to check out the selection of adjustable mounts available from my friends at AofA to avoid problems when moving a scope from one platform to another. The Mamba-Lite has a graduated reticle that can be illuminated at five brightness levels with the touch of a button located in the center of the parallax adjustment turret on the left side. It made a great combination for this awesome carbine.

Light weight in air rifles is always a plus, especially if taking it into the field going for small game. With the number of regulated shots that the XR can give on one fill it should not be necessary to carry an air supply into the field. The company rates the XR at an energy output of up to 28 foot-pounds. My results yielded 25.54fpe with the Vortex 14.66 grain domed pellets and Knock-Out slugs delivered more than 22fpe with their 25.39 grain weight. Another plus is the XR can be de-cocked when needed. Simply hold back the cocking lever and depress the trigger while slowly letting the cocking lever go back to rest.

The Concept family includes variations in style and it can be accessorized very easily, even by a novice. Calibers available are: .177, .22 and .25. Please refer to this link (insert here) to gather more info. It is a very sweet shooter made by a well-known name in airguns. If it could be done without driving costs up too much, my wish is future versions have an anti-double feed mechanism. The MSRP starts at $1300 and Brocock has a two-year warranty that covers the original owner.

The ConceptXR is compact and light
The New Daystate Delta Wolf Is On It's Way!

The Daystate Delta Wolf will be available from AoA very soon. Yes, that’s the news from the manufacturer!

As we can see from these exclusive photographs, the Delta Wolf is is full quantity production at the British factory. There’s at least three dozen guns to be seen in various stages of assembly in this one photograph alone. Assembly began on October 1, 2020.

The New Daystate Delta Wolf Is On It's Way!

First out of the door are the U.K.-legal 12 Ft/Lbs limit guns. High power versions for the U.S. market are high on the company’s priorities, however.

The New Daystate Delta Wolf Is On It's Way!

The company is marketing the Delta Wolf as “the most advanced airgun of all time”.

A major part of that is associated with the built-in chronograph and electronic controls that set the power level and control other features of the gun. These are accessed through a remarkably simple LCD screen in the right side of the buttstock.

The Daystate Delta Wolf was mysteriously “trailed” at the 2020 SHOT Show. We also provided some early information before on this blog.

Daystate says that the new Delta Wolf heralds the birth of a new family of electronic PCP airguns for the forthcoming decade. Nothing like Delta Wolf has been attempted in either the airgun – or firearm – worlds before, the company tells us.

It’s claimed to be an ongoing extension of the company’s position as the maker of the world’s most advanced airguns.

The New Daystate Delta Wolf Is On It's Way!

Delta Wolf Key Features:

– New Advanced Velocity Technology (AVT) with touch screen display.
– Multi caliber capability with fast-change barrel system.
– Factory-set power profiles for each caliber.
– Shooter tuning customization.
– Exclusive OEM Huma-Air regulated.
– New large capacity magazine.
– A.R.T-approved barrel.
– Bluetooth connectivity.

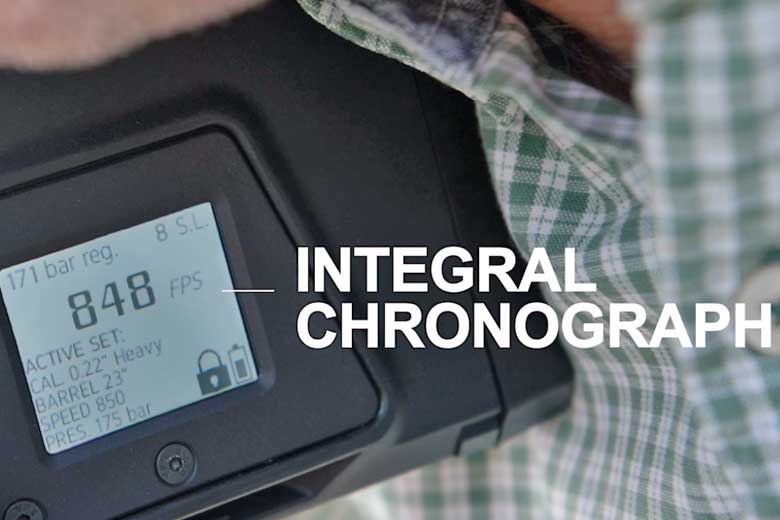

– Built-in chronograph.
– Modular ‘tactical’ format.
– Future proofed – upgradable as features develop.

The New Daystate Delta Wolf Is On It's Way!

The Delta Wolf is the first Daystate to adopt the popular tactical, “black gun” form factor. It represents two years of development and investments, with a number of newly-filed patents. That – says Daystate – will make the Delta Wolf a very hard act to follow, let alone beat!

Full Feature List:

– New Advanced Velocity Technology (AVT) electronic management system.
– Available in all popular calibers, .177, .22, are available with a 16.9-inch barrel. Alternatively a 23.6-inch barrel is available for .177, .22, .25 and .30 calibers.
– Barrels and/or calibers can be switched by the shooter without special tools.
– Electronically pre-programmed for quick power and calibre changes.
– With its unique built-in chronograph, the Delta Wolf corrects velocity while also allowing the shooter to dial in their preferred Muzzle Velocity.
– Adjustable 22mm picatinny scope rail and cheek-piece for different scope type/eye relief.
– Picatinny under and side rails for a range of accessories.
– AR style switchable pistol grip, familiar AR style safety.
– A newly developed magazine system with a larger capacity from 8 – 13 shots (according to caliber).
– Magazines can be paired in the breech – to double shot count to 16-26 shots. (Watch the video below for details).
– User-tuneable for different velocity and power levels with different ammunition types.

A.R.T-developed barrels are compatible with the latest generation of airgun ‘slug’ ammunition.
– A Bluetooth module allows the airgun to connect in the future to other accessories and apps.
– Superior ergonomics with fast-switching side lever action – conversion from left to right in around a minute.
– Adjustable but pad with optional exclusive PRS accessories to add an expanding range of custom accessories.
– Large, 30mm diameter, carbon fibre shroud the DeltaWolf is a rifle to be seen but not heard and optional 0db silencer for backyard-friendly report.
– Removable bottle – carry extra lightweight carbon fiber bottles with you while also being able to fill through a connector on the rifle.
– New fast flow valve system.
– Exclusive factory-fit Huma Air Regulator.
– Huge – biggest in class (34cc) – plenum chamber for more power.
– Onboard high capacity Li-Po battery with charging port on rifle (charges via USB-C connector).
– Weight (approx.) 6.84 Lbs for 23.6-inch barrel model.
– Overall length 34-inches for the long-barreled model.
– Electronic match trigger and multi adjustable blade positions.

Phew!!!!

Despite being the most technologically advanced airgun of all time, Daystate says that the Delta Wolf has been designed and built to be simpler to use, easier to tune and faster to service.

The Delta Wolf will be available in the US from Airguns of Arizona – of course!

To be one of the first to own a Delta Wolf, you can phone AoA on 480-461-1113 or order online right now! It’s a fair bet that demand is going to substantially exceed supply…

The Sightron SIII FT 10 – 50 x 60 Scope Is A Winner!

If your interest is accurate shooting with your air rifle at medium to long ranges, this Sightron riflescope has a lot to offer!

There’s no doubt that 10 years of Extreme Benchrest competition has driven the mushrooming interest in long range benchrest shooting.

But it’s not just benchrest. Airguns are being shot at ever-increasing ranges for other reasons, too. Long range hunting, American Field Target competition and even just challenging long range plinking for fun are all huge growth interests.

The Sightron SIII FT 10 – 50 x 60 Scope Is A Winner!

Then, of course, there’s the amazing increase in power, capability and long range accuracy capabilities that have been engineered into modern PCP air rifles, like those from Daystate and Brocock. Just think of all the effort that’s going into Daystate’s ART program!

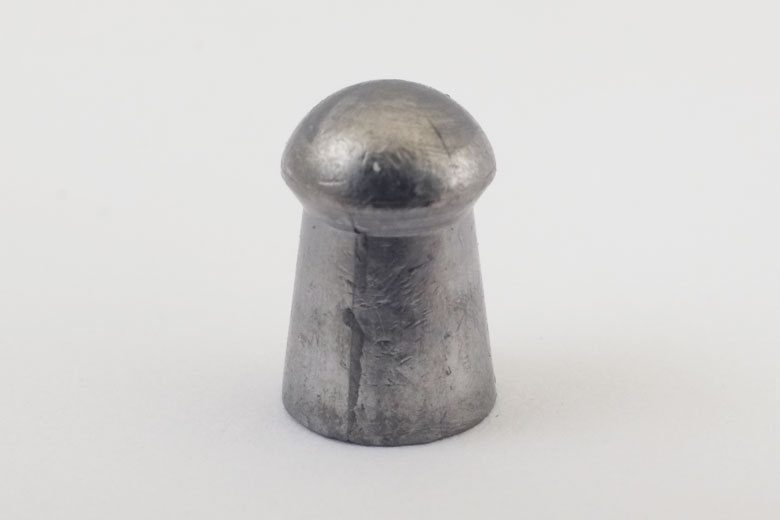

And now the long-range airgun shooting game is taking yet another step forward with the introduction of bullet-shaped slugs for airgun use. The big improvements in Ballistic Coefficient offered by slugs, compared to traditional “wasp-waisted” pellets shows to its best effect in shooting at extended ranges.

The Sightron SIII FT 10 – 50 x 60 Scope Is A Winner!

All of this means that there’s more and more focus on the quality of the riflescopes used on air rifles. After all, those tremendous capabilities in airguns and ammunition – together with your personal shooting skill, of course – is wasted if you can’t see the target properly!!!

That brings us to the need for high quality riflescopes, such as those from Sightron.

Sightron USA is a strongly-backed company with considerable optics and mechanical expertise in both R&D and its own manufacturing facilities in both Japan and Philippines. That’s important to understand: Sightron is not like many other optics companies which simply brand riflescopes manufactured by another company overseas.

Airguns of Arizona has years of experience with Sightron scopes, so their staff can give their own personal opinions if you order by phone. In this blog post, however, we’ll take an overview of the Sightron SIII FT 10 – 50 x 60 riflescopes that are available in a number of configurations, with choices of reticles and turrets.

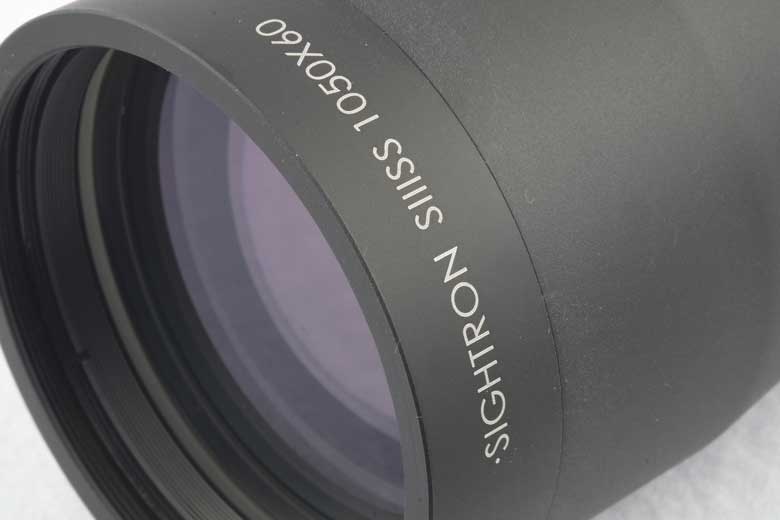

Sightron SIII Series Field Target 10 – 50 x 60 riflescopes are airgun-ready, with a focus on FT competition. They have a great reputation with Field Target shooters! However, they are suitable for far wider use than just FT competition and practice.

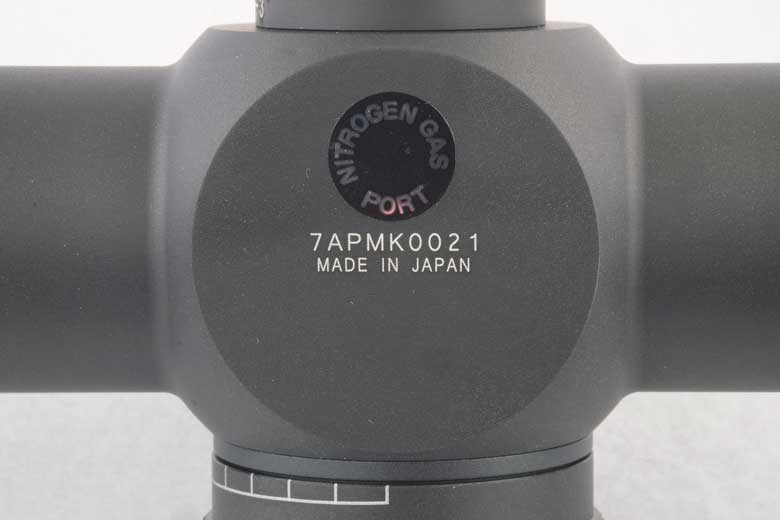

All SIII scopes are designed and manufactured by Sightron itself in its own factory in Japan. For many scope purchasers, such a pedigree is – in itself – a highly-significant factor in their purchasing decision.

Obviously this is a high magnification scope. Yes, it can be used at 12x magnification (the mag limit for traditional Field Target competition). However it has huge potential for precision long range shooting, such as benchrest competition and hunting.

As the name implies, Sightron SIII Series FT 10 – 50 x 60 scopes all have a whopping 5 x magnification range, from 10 x to 50 x magnification. Combined with the 60mm objective lens, this means that they are large scopes and need to be mounted with this in mind. High rings will almost certainly be in order.

I used UTG Pro rings from Leapers to install a Series III FT scope onto a Daystate Revere. The finish of both matched precisely and they worked well together.

The Sightron SIII FT 10 – 50 x 60 Scope Is A Winner!

Other common specifications for SIII Series FT scopes are an overall length of 26.9 Inches and 30.8 Ounces weight. They all have a 30mm tube diameter and include side parallax adjustment for ranges between 10 and 300 Yards.

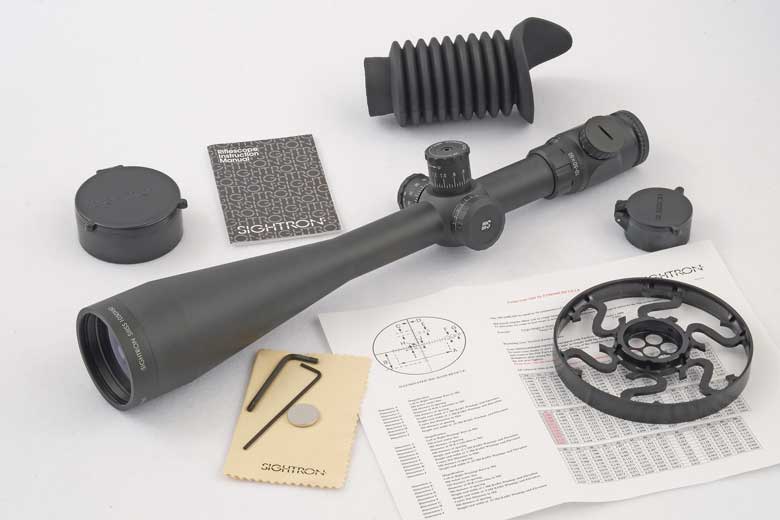

Other supplied accessories include a wonderous, 3-Inch long rubber eye cup and a pair of flip-up lens covers. There’s also an instruction sheet giving vast detail about the reticle, its graduations and how to use it.

This makes them ideal for long-range airgun benchrest shooting and hunting, too.

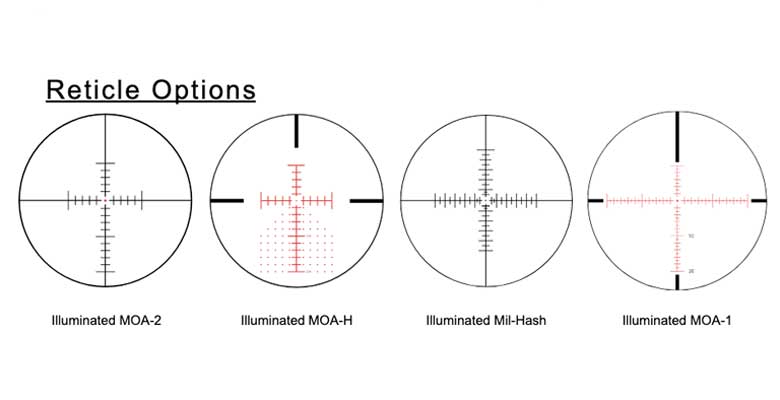

In fact, AoA stocks three models in the Sightron SIII Field Target series. The differences are to be found in the combination of reticle and turret. Two models combine target-style, capped elevation and windage knobs with MOA reticles. One has a Mil-hash reticle combined with tactical (uncapped) turrets.

The Sightron SIII FT 10 – 50 x 60 Scope Is A Winner!

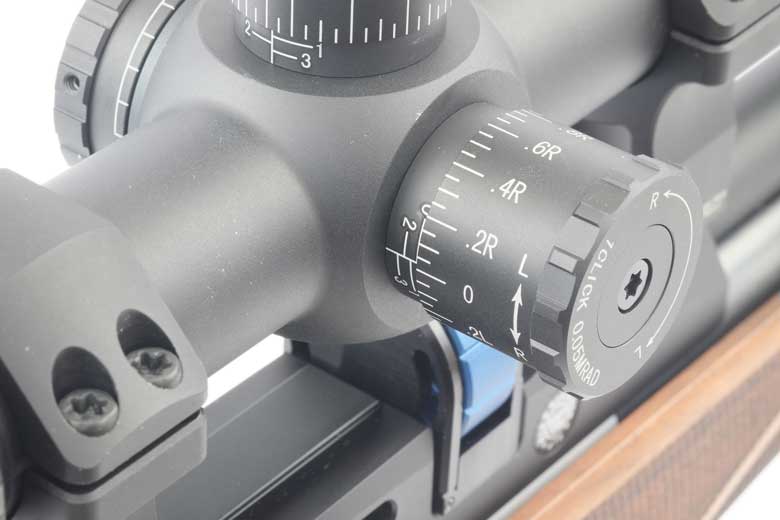

As Second Focal Plane scopes, the click values (1/8 MOA or 0.5 MRAD) given in for turret clicks in Sightron’s specifications relate to 24 x magnification. They will – of course – represent double the angular distance at 12 x and half at 48x mag.

Although the graduated reticles can be used to calculate a target’s range, most airgunners will likely use them for holdover when shooting instead.

In each case, the reticles can be illuminated – if required – by using the graduated control knob on the eyepiece.

The Sightron SIII FT 10 – 50 x 60 Scope Is A Winner!

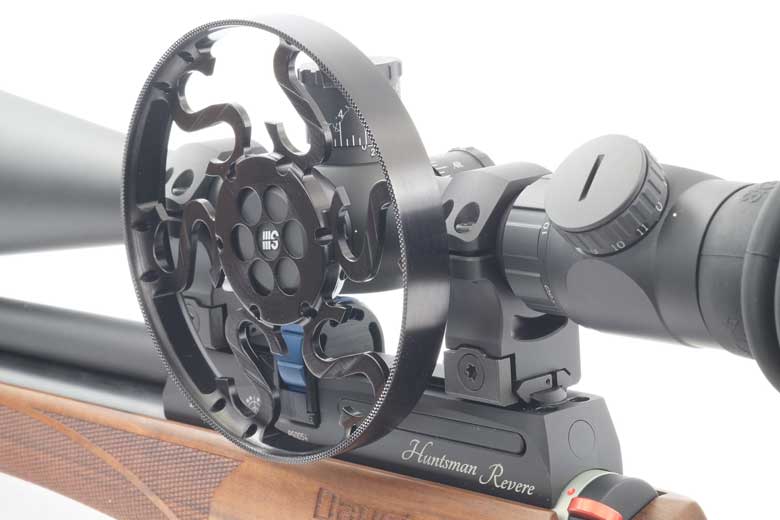

A large, 5-Inch diameter, machined Aluminum sidewheel is included with all FT models for precision ranging. Unlike many sidewheels, this is not pre-marked with ranging distances. Sightron expects that customers for its SIII Series scopes will want to create their own “range tapes” for use with their own specific combination of air rifle, pellet and personal vision.

The Sightron SIII FT 10 – 50 x 60 Scope Is A Winner!

That marks these scopes out as being intended for serious users! That probably includes you, too. Ask the guys at AoA about them…

Part One

At first glance the Concept XR comes across as “tacticool”, however, this updated Brocock PCP is more than that. New for 2020, this British-made air rifle is a modified bullpup design. The name “Concept” comes from its modular platform capability and the modifications that the end user can easily adapt to this handy, lightweight and powerful PCP.

               Updates that make this new for 2020 include replacement of a bolt-action with a side-lever cocking mechanism, a new floating hammer mated to a HUMA regulator and 150cc air reservoir for weight reduction, putting this whole package at around 6.5 pounds without optics. The black anodized receiver is machined from a solid billet of aircraft aluminum and houses a power adjustment knob on the right side. A 10-round rotary magazine is inserted from the left side between two 2.75-inch long 11mm dovetail rails. Because the magazine sits about one-half inch above the rails, a riser rail is provided and mounted in front of the magazine opening in the receiver, providing multiple optics mounting options. Besides the obligatory collapsible stock (having six stops), there are three picatinny rail sections mounted at the three, six and nine o’clock positions and an AK-47-style grip. Of course, the furniture can be swapped out for after-market parts at the owner’s discretion.

               The barrel on the Concept XR is 17 inches long and of German manufacture. The bore is slightly choked and I understand it has a “precision finish” to it. The barrel is free-floating as well as shrouded. The muzzle is threaded in case additional suppression is desired and a thread protector is included. Under the barrel resides a 150cc air reservoir with a manometer built into the front. The reservoir is filled to 200 bar (2900psi) using a brass probe. A rotating collar keeps debris out of the fill port.

               The Concept XR’s trigger is a curved, smooth faced style and two-stage, user adjustable. Factory set for what is considered optimal for a clean break and safety, the sample gun trigger broke at an average 2 pounds, 1.6 ounces and was very crisp and clean. The safety is a small paddle located directly in front of the trigger so it is easy to disengage with the trigger finger.

               My sample rifle arrived without optics or a suppressor, so I outfitted it with an MTC Mamba Lite 4-16x42mm illuminated reticle scope on Sports Match medium rings. I also installed a DonnyFL suppressor to further quiet the already low report of this airgun, giving it a working weight of 8.25 pounds. The overall length with the buttstock fully extended was 36 inches without a suppressor attached.

               The power adjuster on this .22 caliber model has four positions and can be switched on the fly. The full-color owner’s manual indicates diabolo pellets work best, however, with the adjustable power levels and slightly choked barrel, it will be interesting to see how it handles slugs. Magazine loading is easy and straight-forward and it is deep enough to handle longer pellets/slugs. Additionally, a single-shot tray is provided with the gun. Caution must be exercised to avoid double-feeding pellets.

               Solidly built and handsome to look at, the results of how well this airgun did will be in Part Two. In the meantime, to view the Brocock lineup available from AofA, click on this link.

Concept XR showing power adjustment knob
New side-lever on the Brocock Concept XR
